FORD 9", ø330mm, C6 Z51, PARKING BRAKE

The KORE3 C6 Z51 Rear Big-Brake Kit with drum-in-hat parking brake (DIHPB) for the big-bearing Torino Ford 9" rear axle application adapts high-performance, high-quality, 5th or 6th generation Corvette (C5/C6) brake components to your Ford 9" equipped vehicle. Finally, a rear big-brake solution with the best of both worlds in both performance and convenience. Kit includes provisions for ø190mm, drum-in-hat, C5/C6 parking brake utilizing the drum that is integrally cast into the C6 Z51 rear rotors.

Make the most of the vast aftermarket support for both the Ford 9" and the C5/C6 Corvette brakes by combining them. Numerous rotors, calipers, and brake pads are available to suit nearly anybody's needs and/or budget, making the KORE3 Ford 9" big-brake conversion a nearly unbeatable combination for the rear of any muscle car, whether you're grocery getting, pro-touring, or a little bit of both.

Both Ford and the aftermarket offer several versions of the 9" housings with the most common described below. Dimensions represent H X W X Offset where H=Vertical Hole Separation, W=Horizontal Hole Separation, and Offset=Distance from Axle Shaft Flange to Outside of Bearing.

  • Small-Bearing (ø2.835"): 2.00 X 3.31 X 2.66
  • Big-Bearing (ø3.150"): 2.38 X 3.50 X 2.31
  • Big-Bearing Torino (ø3.150"): 2.00 X 3.56 X 2.50

  1. Standard rotor configuration is 5 x 4.75" with ø70.5mm center pilot (GM). Alternative rotor configurations are available. Please contact for details.

  2. Axle flanges may need to be machined to be less than ø5.9" outside diameter to properly mate with rotors.

  3. Minimum ø17" wheels are recommended, however not all ø17" wheels will fit . Verify wheel fitment prior to ordering using the appropriate KORE3 fitment template. Wheel fitment is the buyer's responsibilty. Please contact us if you have any questions regarding your specific application or the proper use of the templates.

  4. Vehicles equipped with staggered shocks may require two left hand calipers for proper caliper bleeder screw placement. The brackets are ambidextrous and can be installed facing forward or rearward, inline with the pinion.

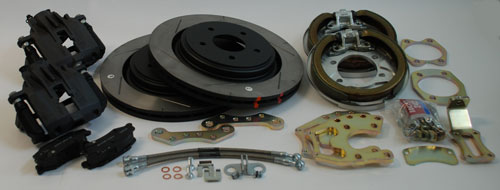

The following items are included in this kit:

  • Installation instructions

  • KORE3 Ford 9" DIHPB Big-Brake Bracket Kit (select below)

  • FlexKORE™ 2-piece Brake Line Kit

  • C5 Rear Caliper Kit (select below)

  • C5/C6 Rear Pad Kit (select below)

  • C6 Z51 Rear Rotors (select below)

Build your kit selecting from the options below. If you have any questions regarding your specific application or don't see an option you may prefer, please don't hesitate to contact us.

Price: $1,542.00
